Stainless Steel Pipe & Tube

Overivew

Stainless steel pipe is a type of hole and longitude steel, economic steel phase is round shape. In addition, whilst twisting and anti-twist intensity is equal, stainless-steel is lighter, so it is utilized in gadget parts and structural projects. Also used to produce all forms of conventional guns, barrels, shells and so forth. This sort of pipe is divided into: stainless-steel seamless pipes and stainless welded pipes.

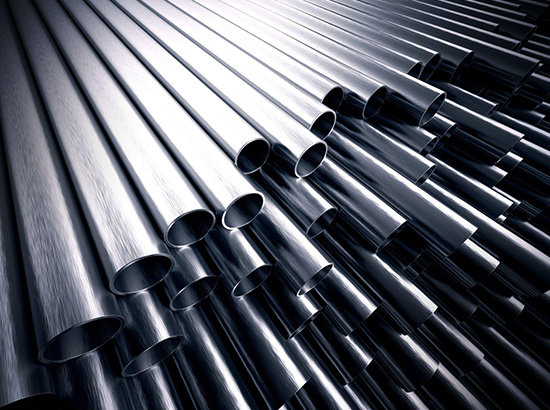

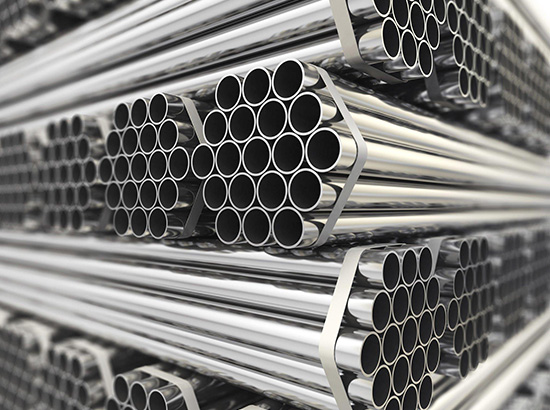

Stainless Steel Pipe

Stainless Steel ERW Square Pipes

SS WELDED ROUND PIPES AND TUBES (ASTM A-554)

(WEIGHT = KG/6METRE)

Size / Thickness (mm)	0.6 mm	0.8 mm	0.95 mm	1.15 mm	1.45 mm	2 mm
0.0	--	1.05	1.2	1.45	1.8	--
12.7	1.15	1.45	1.7	2.0	2.45	--
15.8	1.4	1.85	2.15	2.25	3.15	4.2
19.0	1.7	2.25	2.6	3.1	2.85	5.15
22.2	2.0	2.6	3.0	3.65	4.5	6.05
25.4	2.25	3.0	3.5	4.2	5.2	7.1
31.75	--	3.75	4.45	5.3	6.65	9.0
38.1	--	4.55	5.35	6.45	8.0	10.9
50.8	--	6.05	7.15	8.65	10.8	14.75
63.5	--	7.6	9.0	10.85	13.6	18.5
76.2	--	9.2	10.85	13.1	16.45	22.55
101.6	--	--	14.45	17.45	21.9	30.1

SS WELDED ROUND PIPES AND TUBES (ASTM A-554)

(WEIGHT = KG/6METRE)

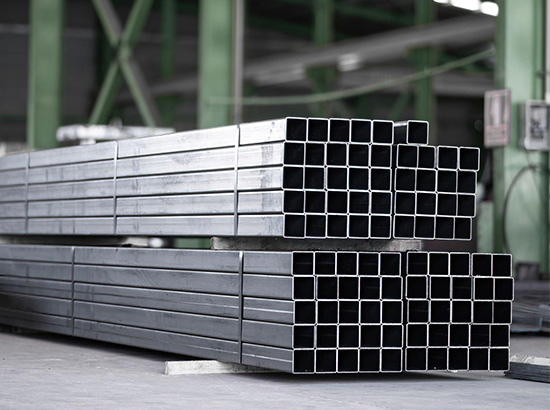

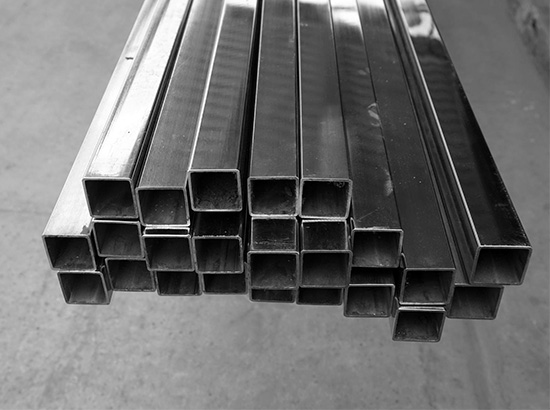

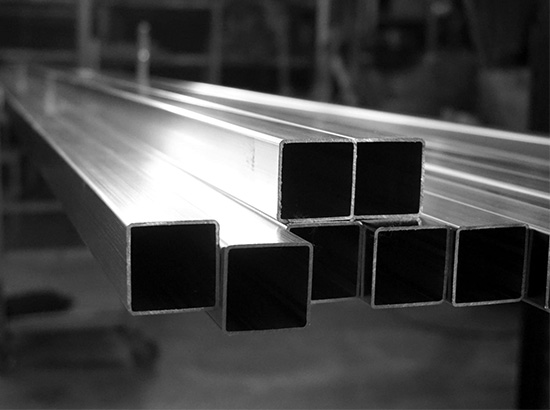

SS SQUARE TUBES

Size / Thickness (mm)	0.8 mm	0.95 mm	1.15 mm	1.45 mm	2 mm
12 X 12	1.85	2.15	2.25	3.15	4.2
15 X 15	2.25	2.6	3.1	3.85	5.15
20 X 20	3.0	3.5	4.2	5.25	7.05
25 X 25	3.75	4.4	5.3	6.65	9.0
30 X 30	4.5	5.35	6.45	8.05	11.2
40 X 40	6.0	7.15	8.65	10.8	14.75
50 X 50	--	9.0	10.85	13.6	18.6
60 X 60	--	10.85	12.1	16.45	22.55
80 X 80	--	14.45	17.45	21.9	31.1

SS RECTANGULAR TUBE

Size / Thickness (mm)	0.8 mm	0.95 mm	1.15 mm	1.45 mm	2 mm
10 X 20	2.25	2.6	3.1	3.85	5.15
10 X 30	3.0	3.5	4.2	5.2	7.1
10 X 40	3.75	4.45	5.3	6.65	9.0
10 X 50	4.55	5.35	6.45	8.0	10.9
26 X 13	3.0	3.5	4.2	5.2	7.1
40 X 20	4.55	5.35	6.45	8.0	10.9
75 X 25	--	9.0	10.85	13.6	18.5
60 X 40	--	9.0	10.85	13.6	18.5
80 X 40	--	10.85	13.1	16.45	22.55
50 X 25	6.05	7.15	8.65	10.8	14.75
33 X 13	--	3.5	4.2	5.2	--

SS WELDED SLOTTED PIPES

WEIGHT = KG/6METRE

SLOT SIZE (OD/MM )

15 X 15 WEIGHT(KG)

40X40

11.8

50.8

50X50

14.5

60X40

14.5

SS WELDED ROUND PIPES (ASTM A-249, 269, 270, 312)

Normal Pipe Sizes	Outside Diameter	Schedule 5S		Schedule 10S		Schedule 40S
			W.T		W.T		W.T
In Inch	In mm	mm	Kg/Meter	mm	Kg/Meter	mm	Kg/Meter
1/2	21.34	1.65	0.81	2.11	1.01	2.77	1.28
3/4	26.67	1.65	1.03	2.11	1.3	2.87	1.7
1 1/4	33.4	1.65	1.31	2.77	2.12	3.38	2.53
1 1/2	42.16	1.65	1.67	2.77	2.72	3.56	3.43
2.0	48.26	1.65	1.92	2.77	3.15	3.68	4.1
2 1/2	60.33	1.65	2.42	2.77	3.98	3.91	5.51
2 1/2	73.03	2.11	3.74	3.05	5.03	5.16	8.75
3.0	88.9	2.11	4.57	3.05	6.54	5.49	11.44
3 1/2	101.6	2.11	5.25	3.05	7.51	5.74	13.75
4.0	114.3	2.11	5.95	3.05	8.48	6.02	16.29
5.0	141.3	2.77	9.59	3.4	11.72	6.55	22.06
6.0	168.28	2.77	11.46	3.4	14.01	7.11	28.64
8.0	219.08	2.77	14.97	3.76	20.42	8.18	43.12

CHEMICAL COMPOSITION

Type Grade	EN	C max	Mn max	P Max	S Max	Cr Max	Ni Max	Cu Max	Mo Max	N Max	Other
201.0	-	0.11	10.08	0.051	0.006	14.43	0.5	0.47	-	0.161	-
202 (4% Ni)	-	0.08	6.0-8.0	0.06	0.005	16.0/18.0	4.0/6.0	1.5-2.0	-	0.1	-
204 Cu	1.4597	0.15	6.5-9.0	0.06	0.03	15.5/17.5	1.50/3.5	2.0/4.0	-	0.05-0.25	-
304.0	1.4301	0.07	2.0	0.045	0.03	18.0/19.5	8.0/10.5	-	-	-	-
304 L	1.4307	0.03	2.0	0.045	0.03	18.0/19.5	8.0/10.5	-	-	0.11	-
316.0	1.4404	0.03	2.0	0.045	0.03	16.5/18.0	10.0/13.0	-	2.00/2.5	-	-
316 Ti	1.4571	0.08	2.0	0.045	0.03	16.5/18.0	10.5/13.5	-	2.00/2.5	-	5x % Cupto 0.8
321.0	1.4541	0.08	2.0	0.045	0.03	17.0/19.0	9.0/13.0	-	-	-	5x C Min
